Description

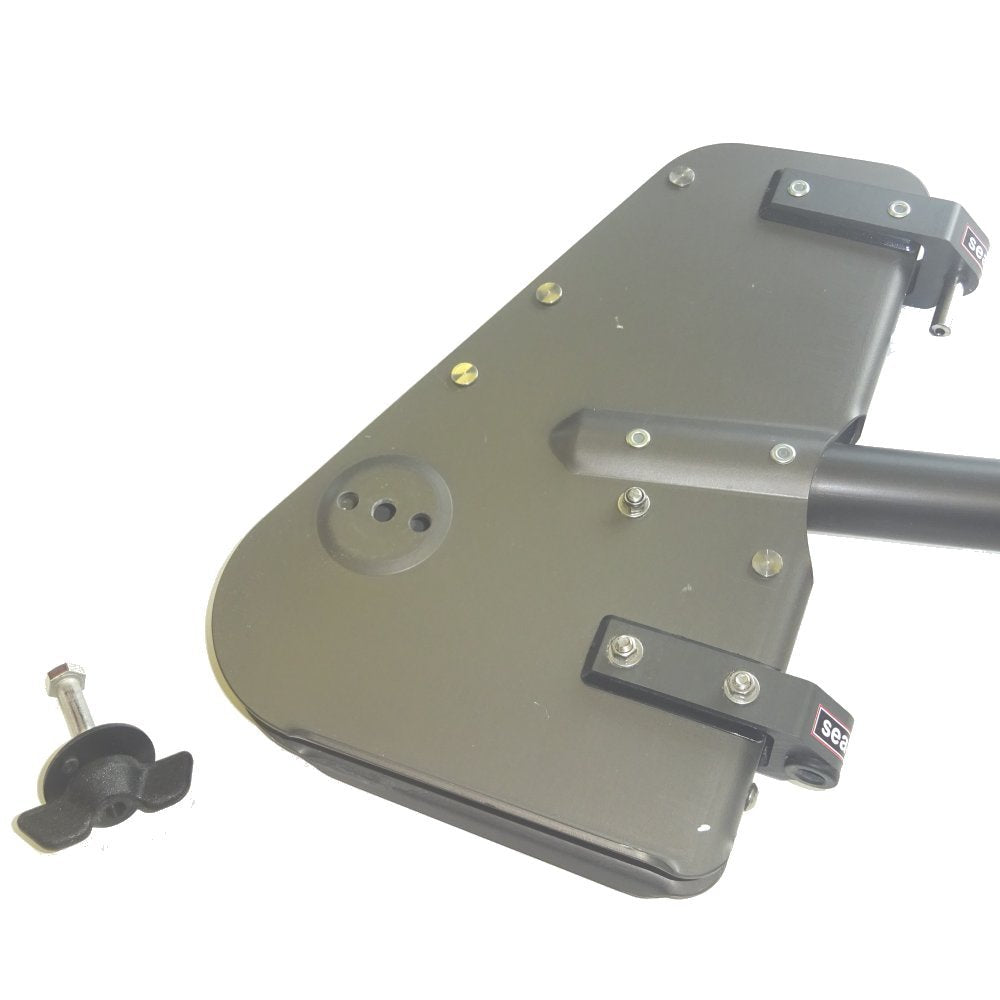

The Rooster Solo alloy rudder stock and tiller. Completes with top pintle, lower gudgeon and an alloy tiller.
(NOTE: Attached & bolted - is the bottom gudgeon, but the top pintle - this is NOT fixed to the stock head - 4 no. rivets supplied so you can drill your own 4 no. holes in the stock and fit the top pintle as required)
| Top Pintle pin dia. | 8mm |
|---|---|
| BS to BS Pintle to Gudgeon | 203 mm |
| Distance from bottom of stock head to bottom of lower gudgeon | 48 mm |
| Tiller - Overall length | 955 mm |
| Tiller tube dia. | 32 mm |
| Pivot bolt dia. | 8 mm |
| Stock width for a rudder blade | 22 mm |
| Pin length | 42 mm |
| Pin diameter | 8 mm |
| Weight (stock+ tiller) | 1.34 kg |
