Description

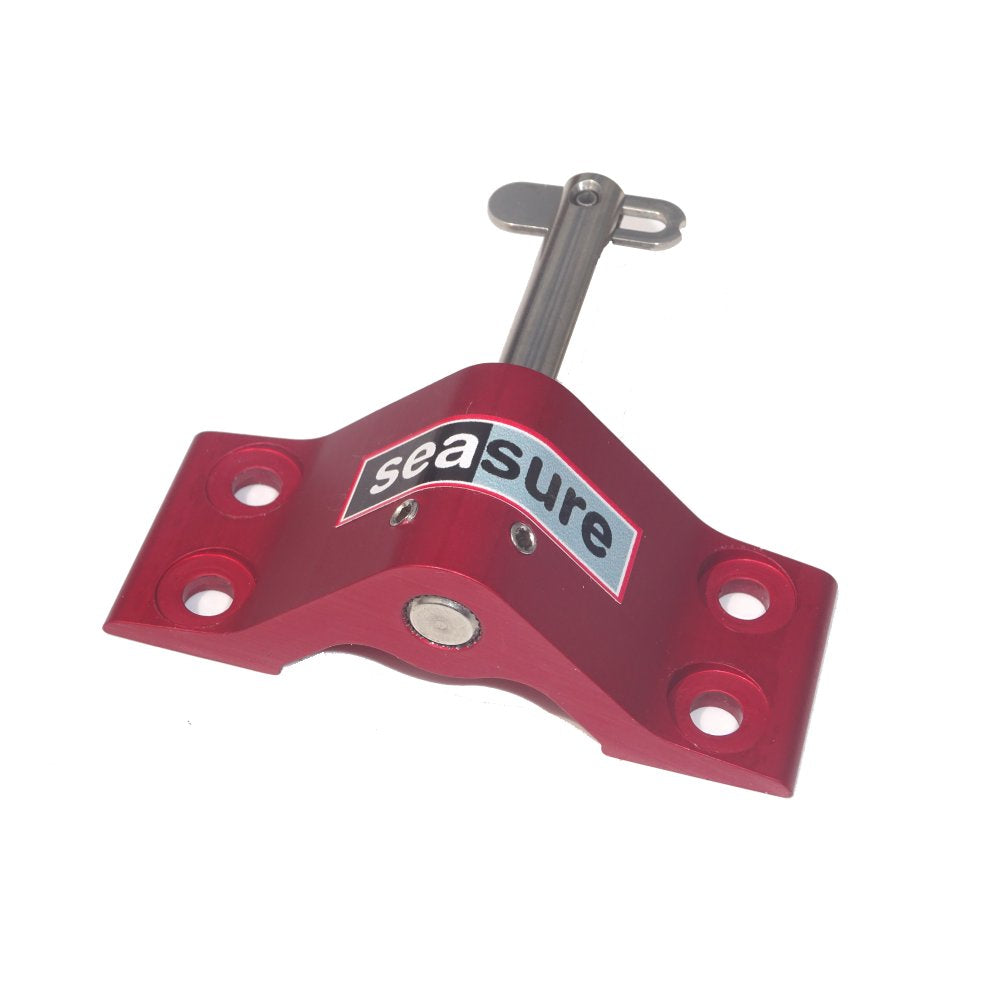

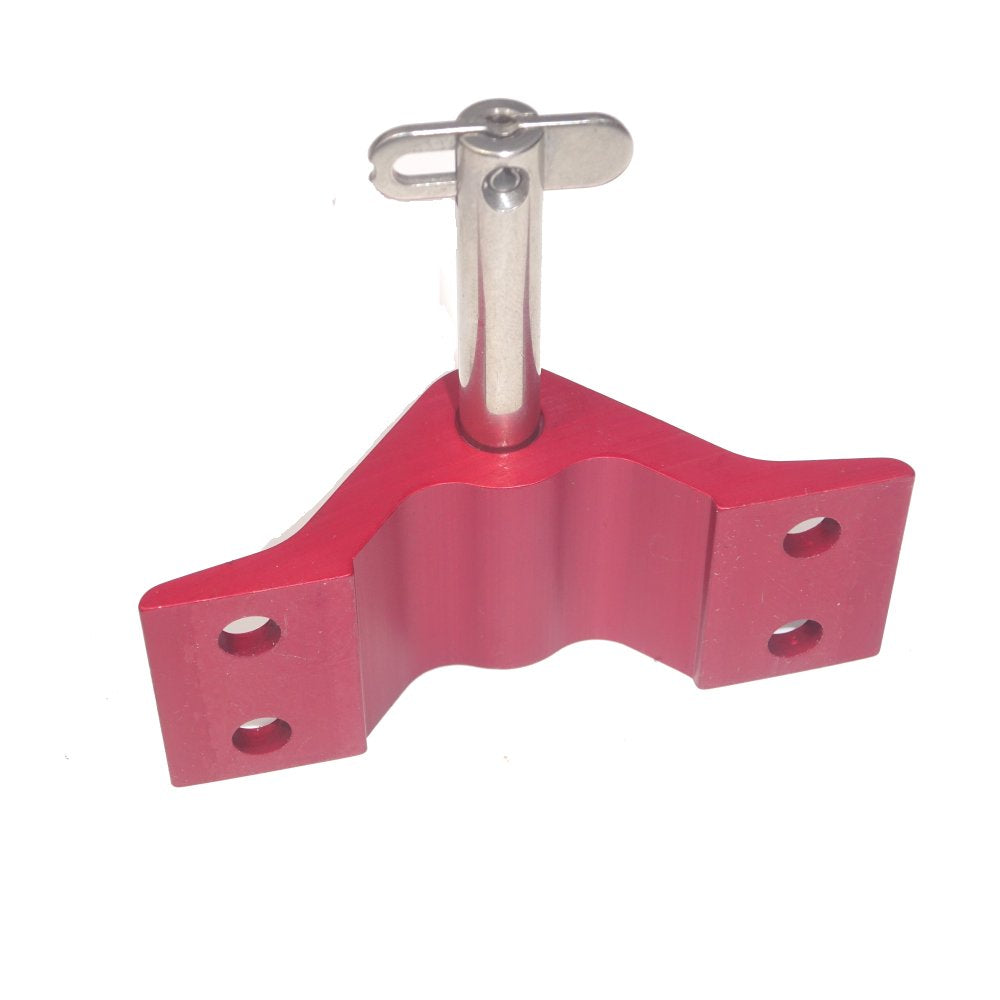

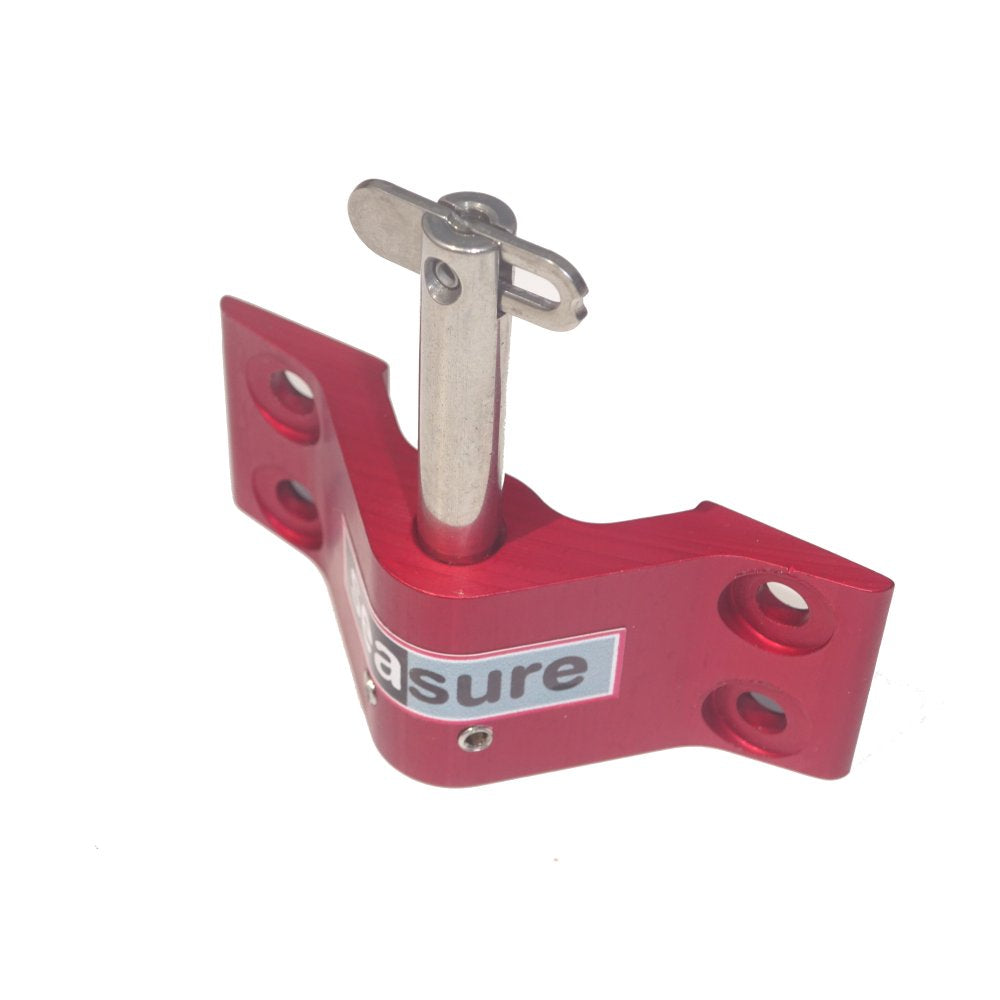

The 4 hole transom mounted pintle is one of the most common and used transom fittings around. The fitting has 4 5mm countersunk fixing holes for attaching to the back of the boat. . It is made to fit snugly with our gudgeon ranges. Packing pieces are available to increase the distance that the fitting sits off the back of the boat. The part number for this is 18.54
The RED range allows serious campaigners to change the transom pintle pin quickly and easily to check for damage or wear so that you can eliminate failures that could stop you winning races.
Seasure Bottom Transom Pintle Properties - Red Performance with Drop Nose
Number of fixing holes | 4 no. |
---|---|
Hole size | 5 mm |
Overall width | 75.8 mm |
Overall height | 29 mm |
Hole spacing horizontal | 55.5 mm |
Hole spacing vertical | 16 mm |
Pin length | 42 mm |
Pin diameter | 8 mm |
Weight | 0.01 kg |
