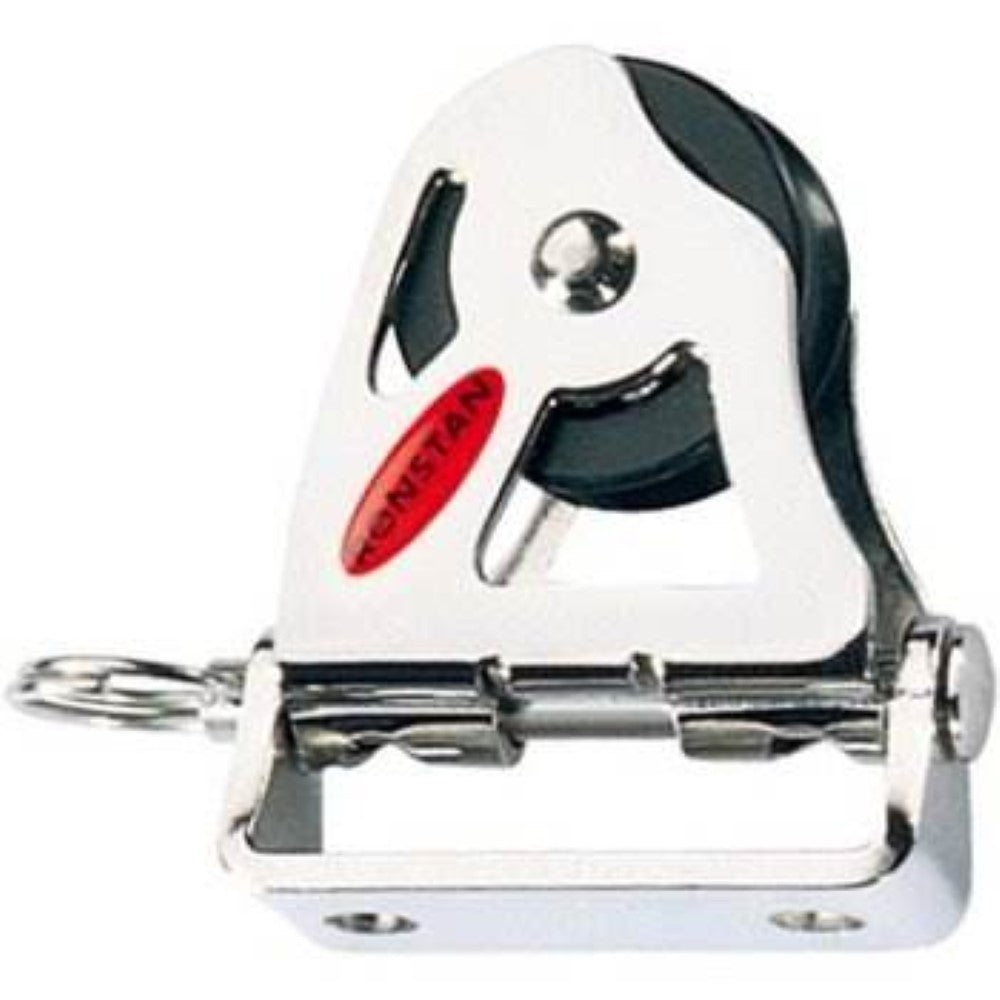

Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers. Precision moulded Acetal sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.

Applications:

• Pivoting version suits controls that need to be trimmed from either side of the boat

Materials:

• Acetal ball bearings
• UV stabilised Acetal sheave
• Grade 316 stainless steel load strap and head fitting

Features:

• 180 degree pivoting sheave
• Sheave Diameter - 20mm
• Maximum Rope Diameter - 6mm
• Fastening diameter - 4mm
• Maximum working load - 250kg
• Breaking load 550kg
• Weight 30g
