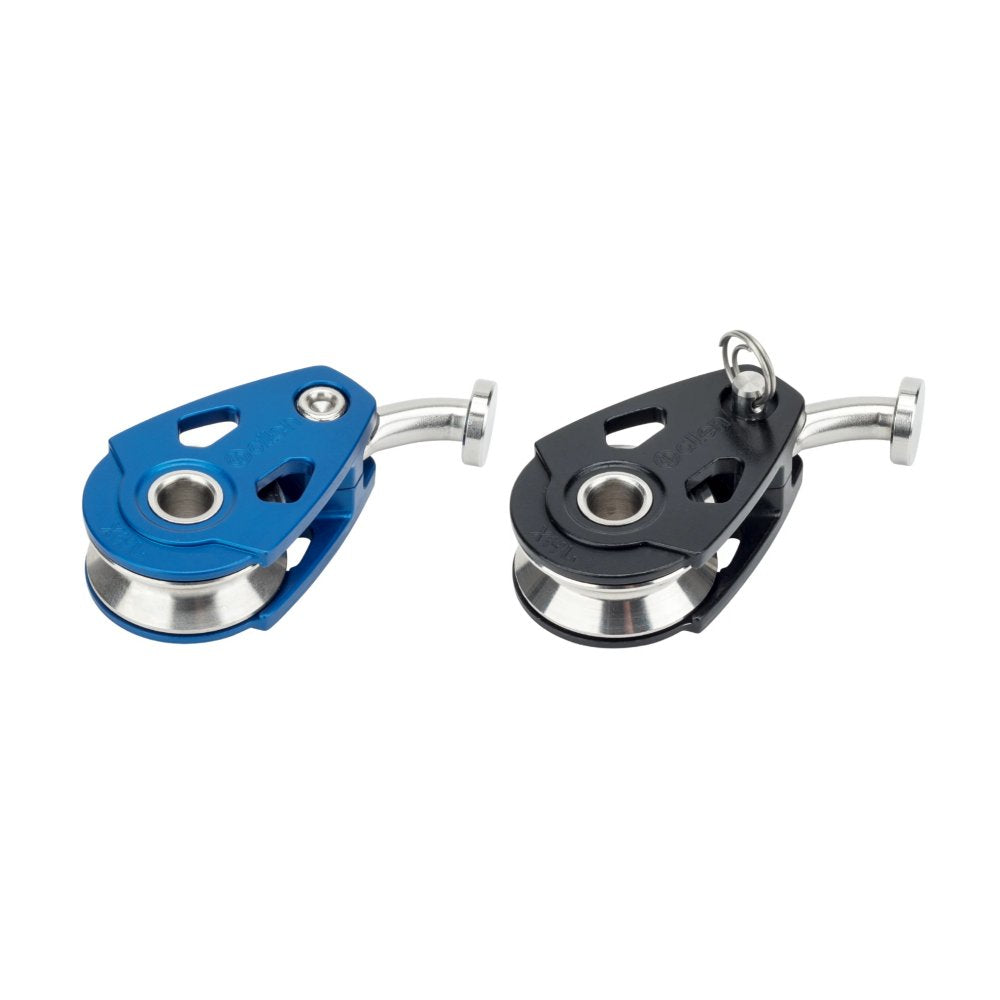

Single Extreme High Load Block For Laser/ ILCA.
The A2031XHL-873 is a Laser/ ILCA specific kicker block.
Designed with a custom body which incorporates the Laser/ ILCA kicker key to give maximum strength in the smallest package possible. This design eliminates the need for shackles or rope to attach the Vang key.
XHL Bearing Technology
The XHL range has been designed to deal with extremely high loads without compromising on low load dynamic performance.
This has been achieved by combining the Allen dynamic bearing technology – twin rows of stainless-steel ball bearings running on a stainless-steel axle – with a plain bearing peek washer.
The result is a bearing system which can take extreme static loads without damaging the dynamic performance of the ball bearings.
- CNC machined aluminium side cheeks.
- Replaceable kicker key.
- ILCA specific design.
- Precision turned stainless-steel sheave.
- XHL Bearing Technology.
- 1000 Kg breaking load. (Rated to the kicker key).
The Allen Engineering drawing for the A2031XHL-873 block can be found HERE
|Breaking Load||1000 Kg.|
|Overall Length||48 mm|
|Max. Line||8 mm|
|Working Load||500 Kg.|
