Allen A.282 Open Base Fairlead (GREY) - Boom & Traveller Eye for a Laser/ILCA
If currently in stock:
- Courier Delivery - Duty/VAT Inclusive receive by: Feb 08 - Feb 12

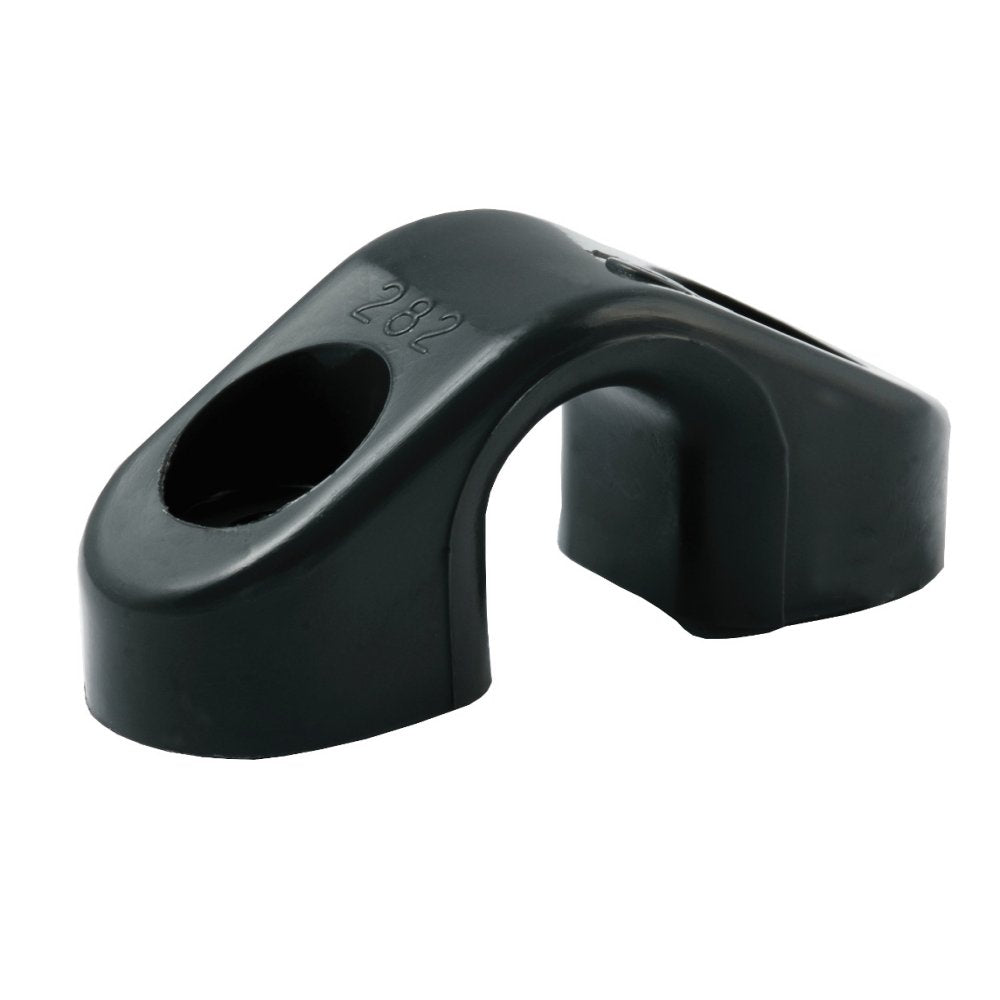

Allen A.282 (grey) Boom & Traveller Eye for the Laser®
See related items for fixing screw and captive nut.
The Engineering Drawing for Allen A.282 can be found HERE
Allen A.282 Fairlead Properties
| Material | Acetal |
| Inside Diameter | 9 mm |
| Fixing Hole Centres | 24mm |
| Fixing Hole Size | 5 mm |
| Overall Length | 41 mm |
| Overall Width | 14.5 mm |
| Overall Height | 18 mm |
| Weight | 6 grams |
| MPN | A.282 |
Attaching eyes to a Laser/ILCA boom:
Rivets are the standard/factory method of affix the plastic eye to the boom. The holes in the boom are 4.8mm 3/16" dia. but can enlarge due to corrosion etc. If the holes are in good condition then a new 4.8mm dia. rivet can be re-used. See this link for a complete list of rivets used on the Laser/ILCA - see HERE
For a more secure method to affix the eye, it is suggested a M5 nut/washer and bolt is used - see blog article: HERE
Laser® is a registered trademark owned by Velum Limited and currently licensed for use in Europe to Laser Performance (Europe) Limited. Rooster Sailing Limited is fully independent of both Laser Performance (Europe) Limited and Velum Limited.
Learn more about caring for your gear on our product care page here
