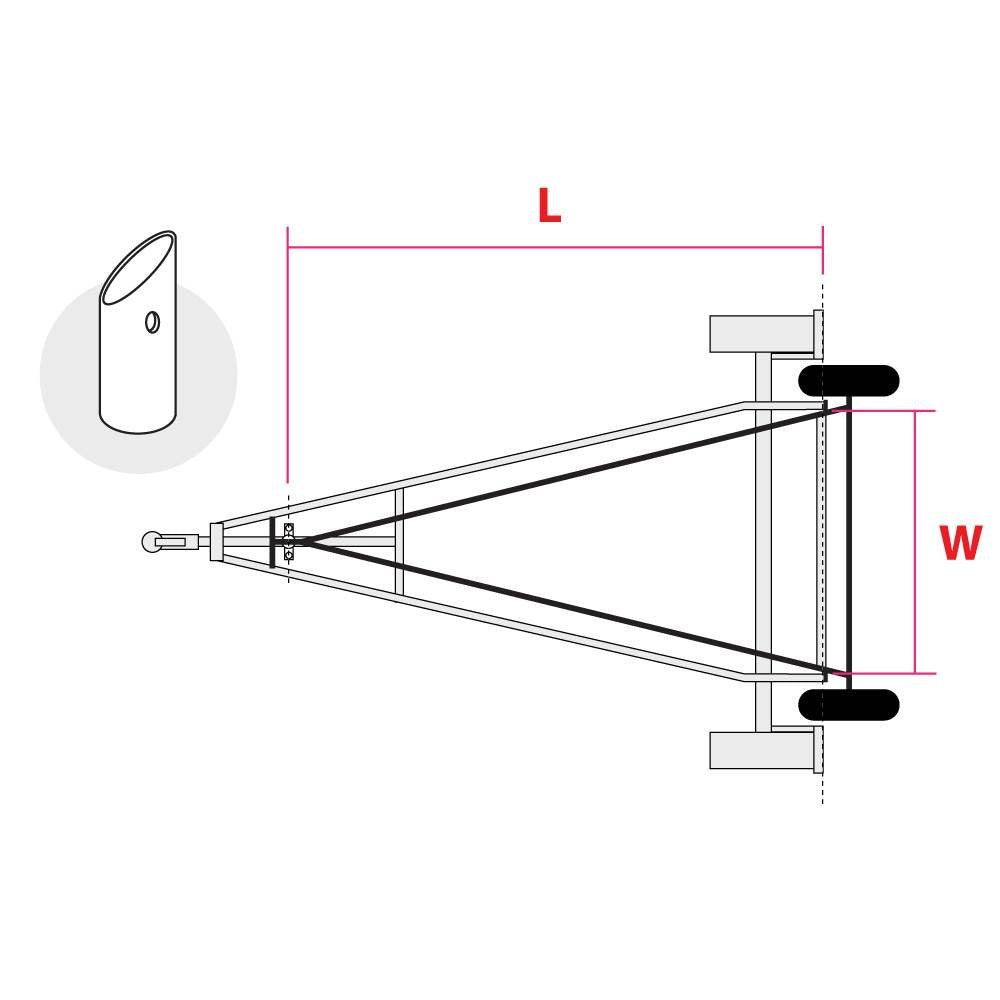

A very strong fully galvanised ´A´ frame gunwhale hung trolley, supplied complete with puncture proof trolley wheels. Suitable for use with Admiral/Bramber style single combination road trailers with with 'round pillar' style attachment. See below image. The Rooster Laser trolley has a 31mm hole for the trailer pillar to connect to.

See images for details and below measurements to help confirm which trolley will be most suitable for your requirements.Trolley weight approx. 24 kg.

Distance (clearance) between the wheels (inside) is 1270 mm (50")

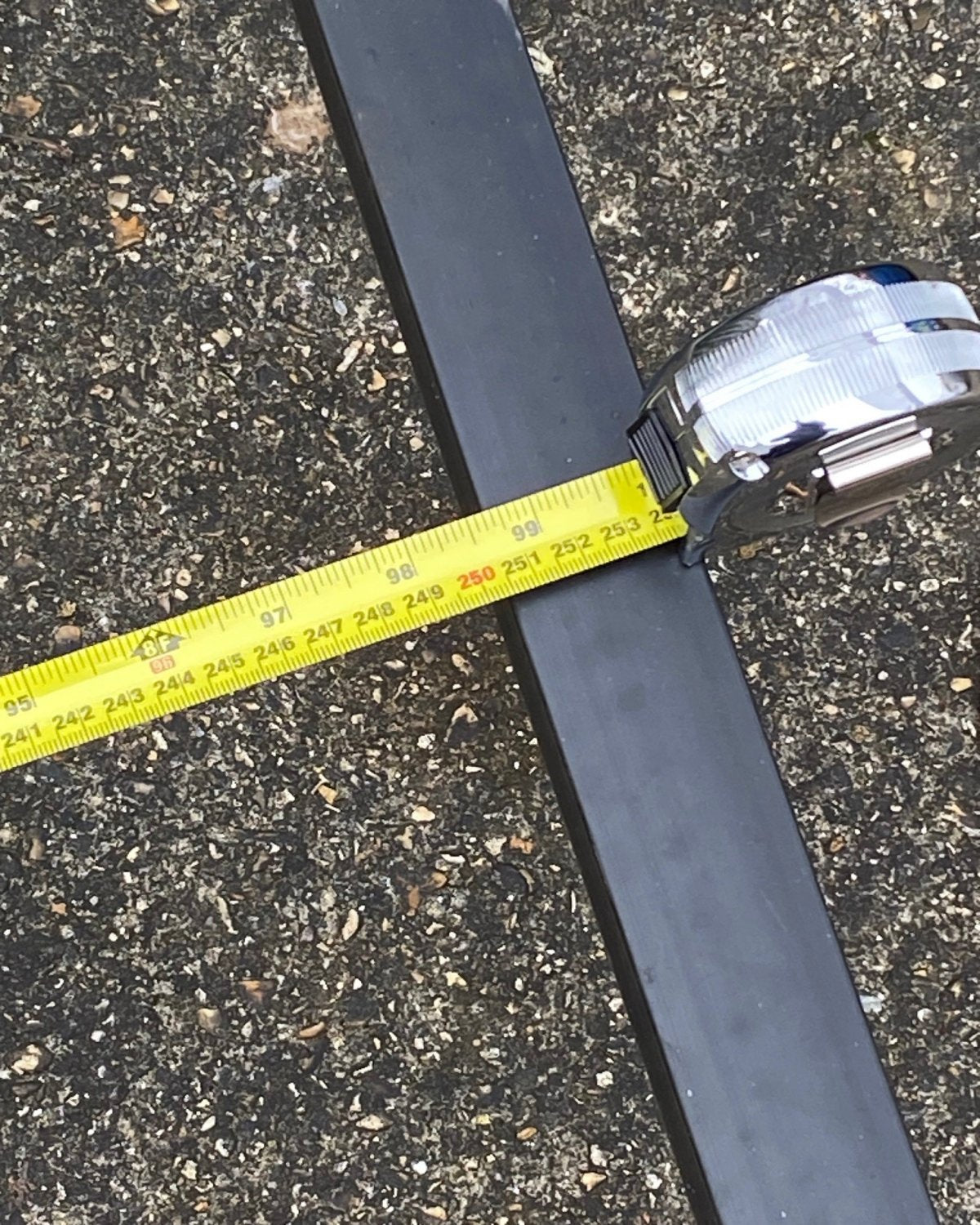

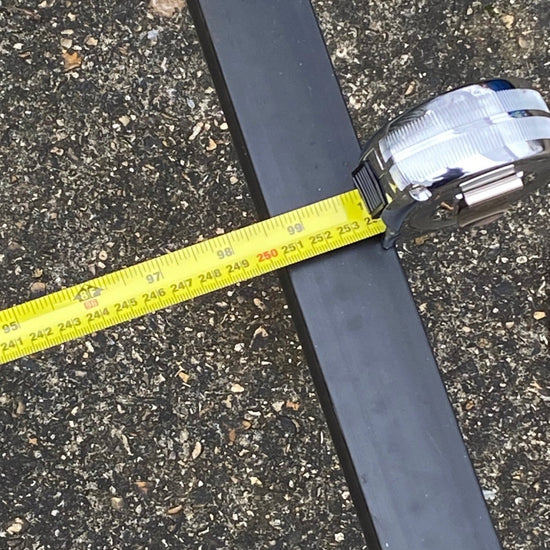

Distance between the main A frame members (taken a base of the A frame) at the axle - see photos below is 1105mm (43.5”)

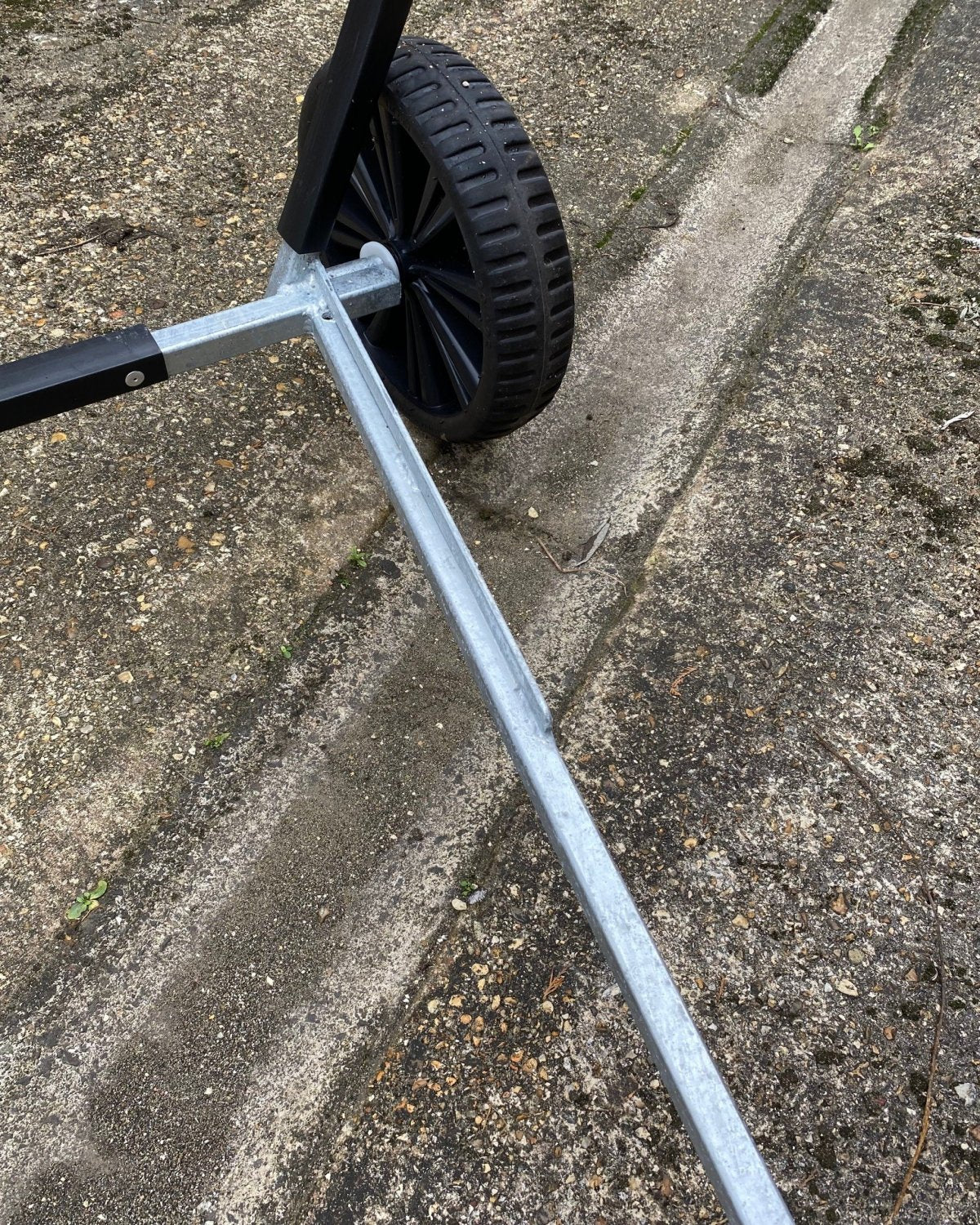

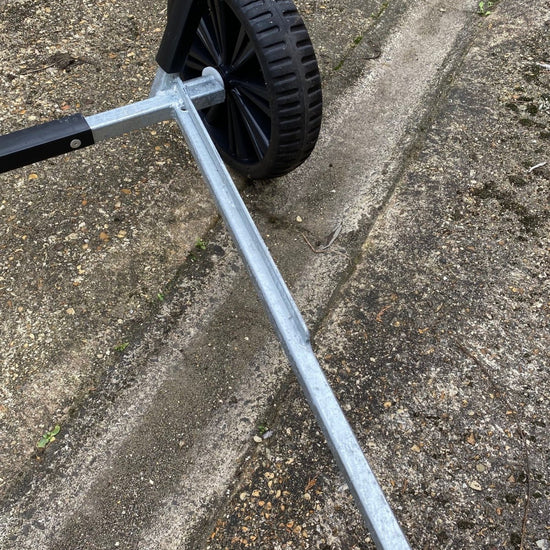

Distance between the near vertical uprights at the axle, (base of upright) - see photo below is 1055mm (41.5”)

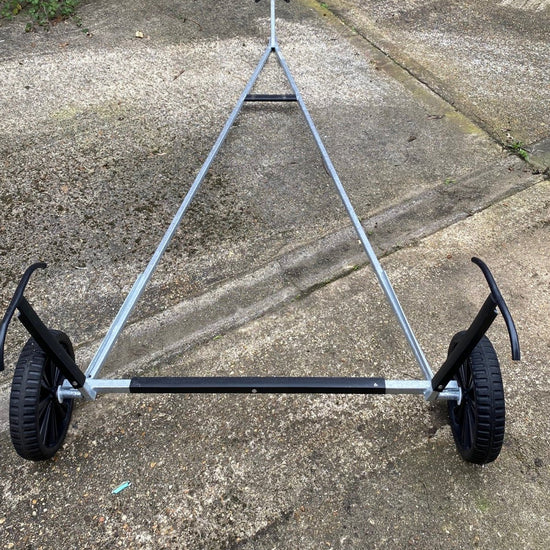

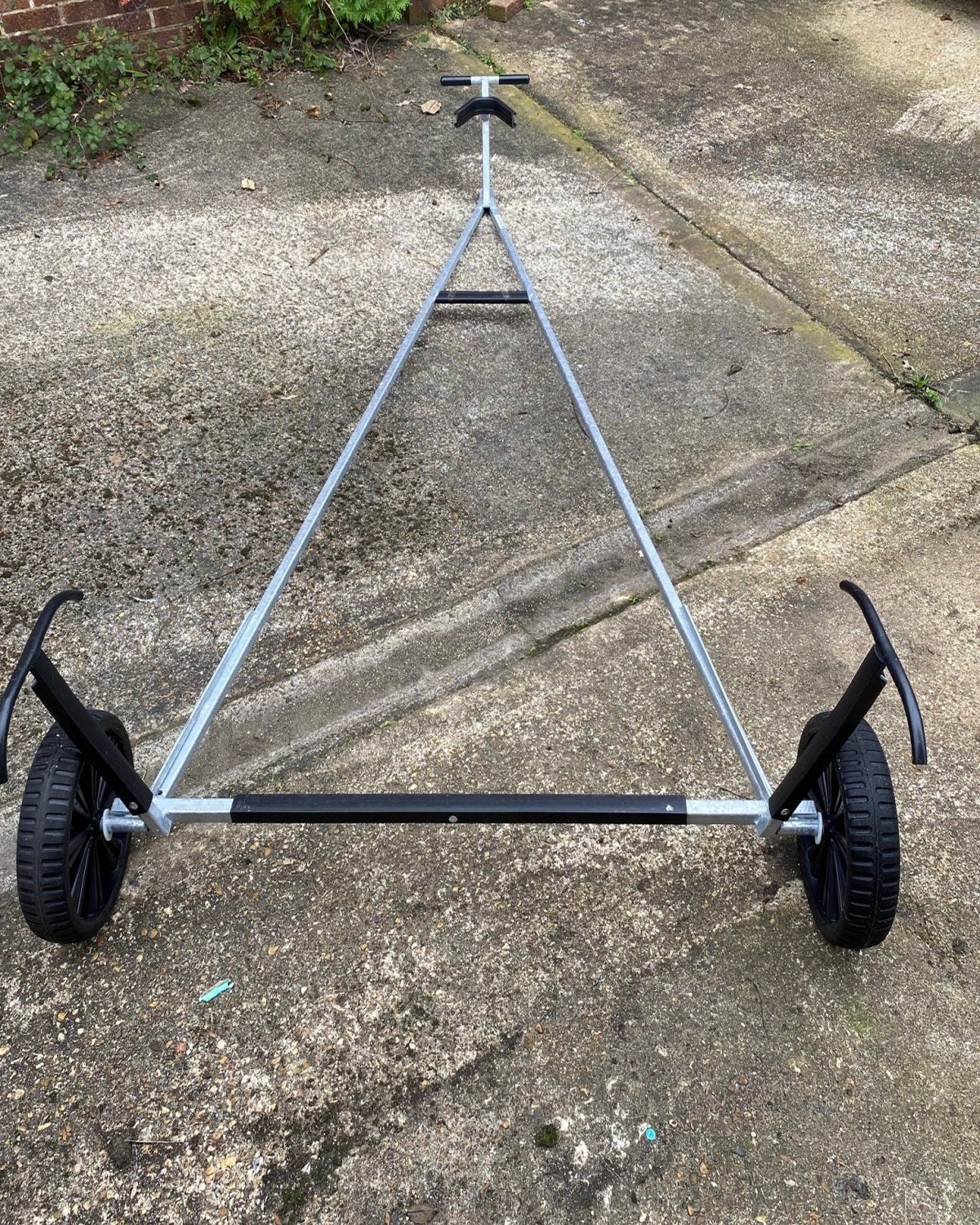

Overall dimensions - See main product photos

Metric

Imperial

PLEASE NOTE: THIS ITEM IS FOR COLLECTION ONLY. However, delivery may be possible to an event attended by Rooster Sailing.

Trolley wheel colours may vary.

Laser® is a registered trademark owned by Velum Limited and currently licensed for use in Europe to Laser Performance (Europe) Limited. Rooster Sailing Limited is fully independent of both Laser Performance (Europe) Limited and Velum Limited.

FEATURES

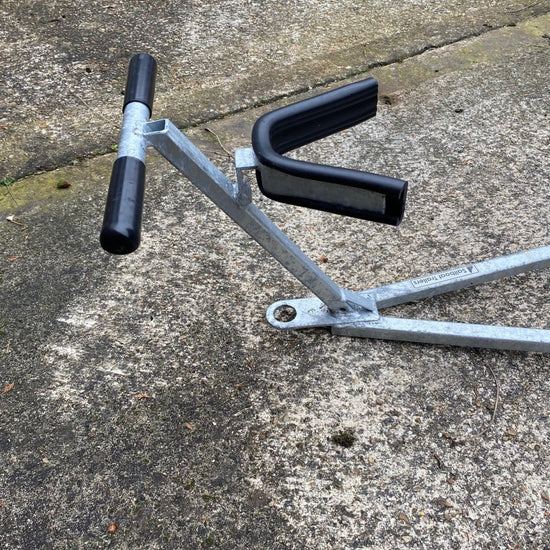

• Padded main axle, bow and gunwhale supports to help protect your boat
• Galvanised metal construction
• Specifically designed for the Laser® sailing dinghy
• Gunwhale hung under the bow and above both wheels
• For use with Admiral/Bramber style single combination road trailers with 'Pillar' style attachment.
