Description

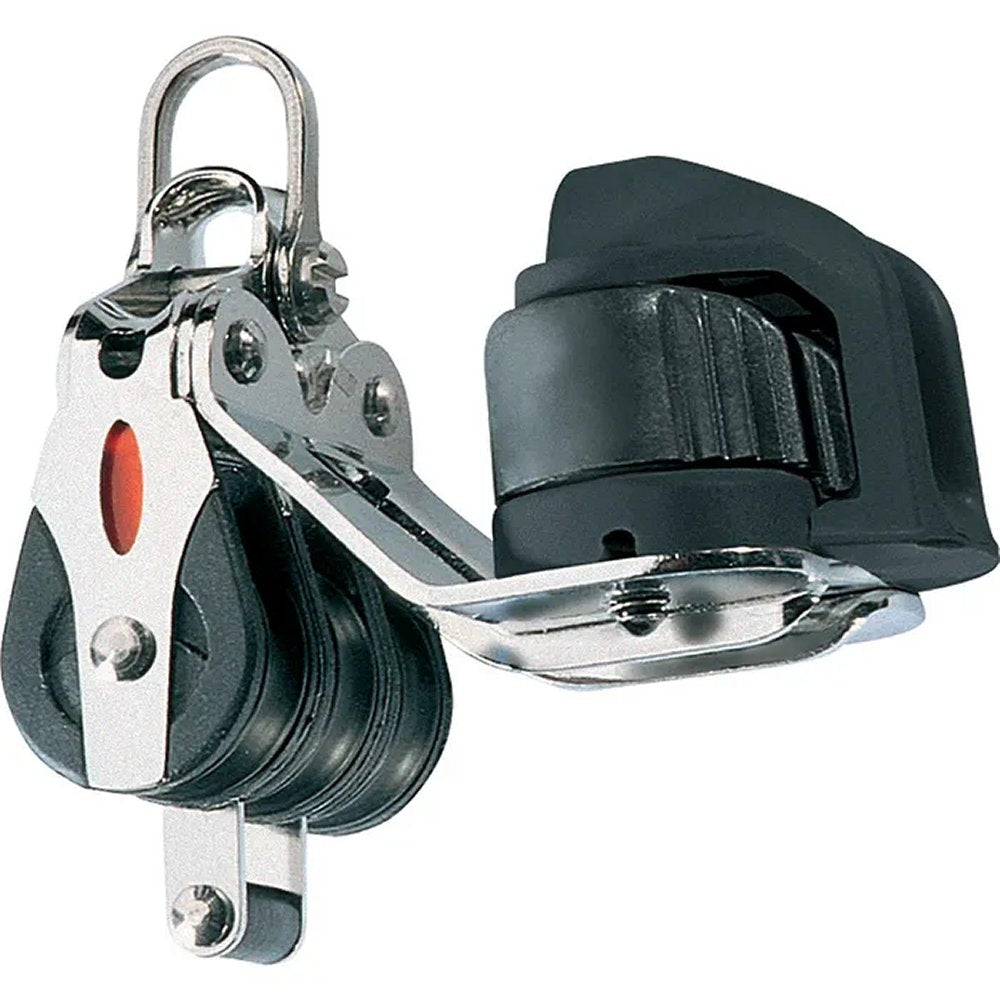

The RF20332 - Precision moulded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.
Applications:
- Dinghy control lines
- Dinghy kickers
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
Ronstan RF20332 Properties
| Sheave Dia. | 20 mm. |
|---|---|
| Breaking Load | 850 kg |
| Pin Dia. | 4 mm |
| Maximum Line Dia. | 6mm |
| Maximum Working Load | 400 kg |
| Fixing Hole diameter | 4 mm |
| Weight | 122 grams |
NOTE: Line load through cleat not to exceed 125kg
