Selden D14-C074-0716 Solo Mast - Sleeved D+ - Ex Rigging Pack
If currently in stock:
- Courier Delivery - Duty/VAT Inclusive receive by: Sep 05 - Sep 09
In 2007 saw in the introduction of the Seldén D+ This developed as a mast that could offer similar characteristics to the existing Cumulus mast being used that the time, but the new D+ was offering a more dynamic response above the hounds.
The D+ has been developed with a front weld taper, allowing for greater sideways response but due to the stiffer section it still maintains the downwind performance associated with the stiffer Cumulus. The D+ is designed for sailors weighing 75-90kg, delivering greater power low down.
A D+ rig will be easier to use in choppy water and gusty conditions where a responsive rig can maximise performance whilst minimising the amount of manual input from the sailor. The D+ mast has been placed 1st since 2010 in the National Championship when Matt Howard won.
"The Selden D+ is a perfect all rounder for the Solo. Providing good gust response and flexibility for the rougher sea states with enough stiffness to maximise pointing in the flatter inland venues." Charlie Cumbley, Multiple Solo National Champion.
The D+ masts are using the new Xtra Proof Strength (XPS) aluminum alloy.
Supplied complete excluding rigging (see related items). NB. This is a collection only product.
Solo Helm Weight v Seldén Mast
| Section | Sailor Weight | Stiffness F/A | Stiffness Athwart |
|---|---|---|---|
| C Sleeved | <75Kg | 14.1 | 9.8 |
| D Plus | 75-90kg | 20 | 13.8 |
| Cumulus | >90Kg | 20.4 | 14.4 |

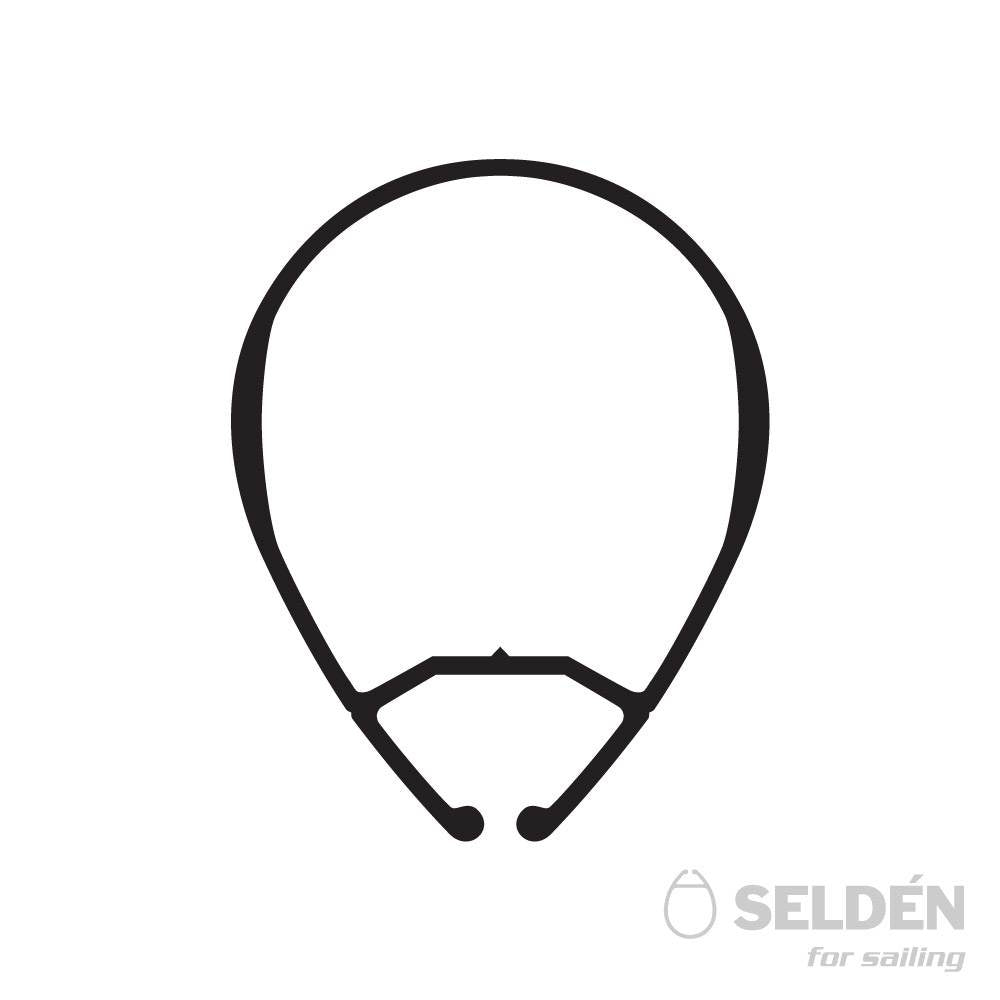

Mast Properties
| Sectional Weight | 1.03 kg/m |
| Dimension - fore/ aft | 73 mm |
| Dimension - athw | 57 mm |
| Stiffness - fore/aft | 19.5 cm4 |
| Stiffness - athw | 14 cm4 |
Mast foot position
You should have 2 mast foot positions, essentially a light/medium setting and a medium/heavy setting. This measurement is from the front of the mast heel to the outside of the centre of the transom.
Flat water (inland conditions)
0-16 knots – 3052mm
16 knots + – 3065mm
Choppy/rough (sea conditions)
0-12 knots – 3052mm
12 knots + – 3065mm
Forestay tension
More rake is now used where possible, the same principle applies to forestay tension on either mast foot position you use. NB. This is measured without the sail up. When the back of the mast touches the mast gate the forestay should just be in tension.
Selden Dinghy Spars Booklet
FEATURES
- All masts Xtra Proof Strength (XPS) aluminium alloy
- CNC plasma cut tapers for ultimate accuracy.
- Heat treated after tapering increases material hardness.
- Durable peened finish.
- Welded in headbox.
- Front taper increases upwind dynamic response.
- Gooseneck with stainless steel spigot and positive lock.
- Optional extended gooseneck.
- Automatic release of outhaul and boom squares further downwind.
- Light weight sheaved heel.
Learn more about caring for your gear on our product care page here
