Allen A2030XHL 30mm Extreme High Load Block
If currently in stock:
- Courier Delivery - Duty/VAT Inclusive receive by: Sep 06 - Sep 10

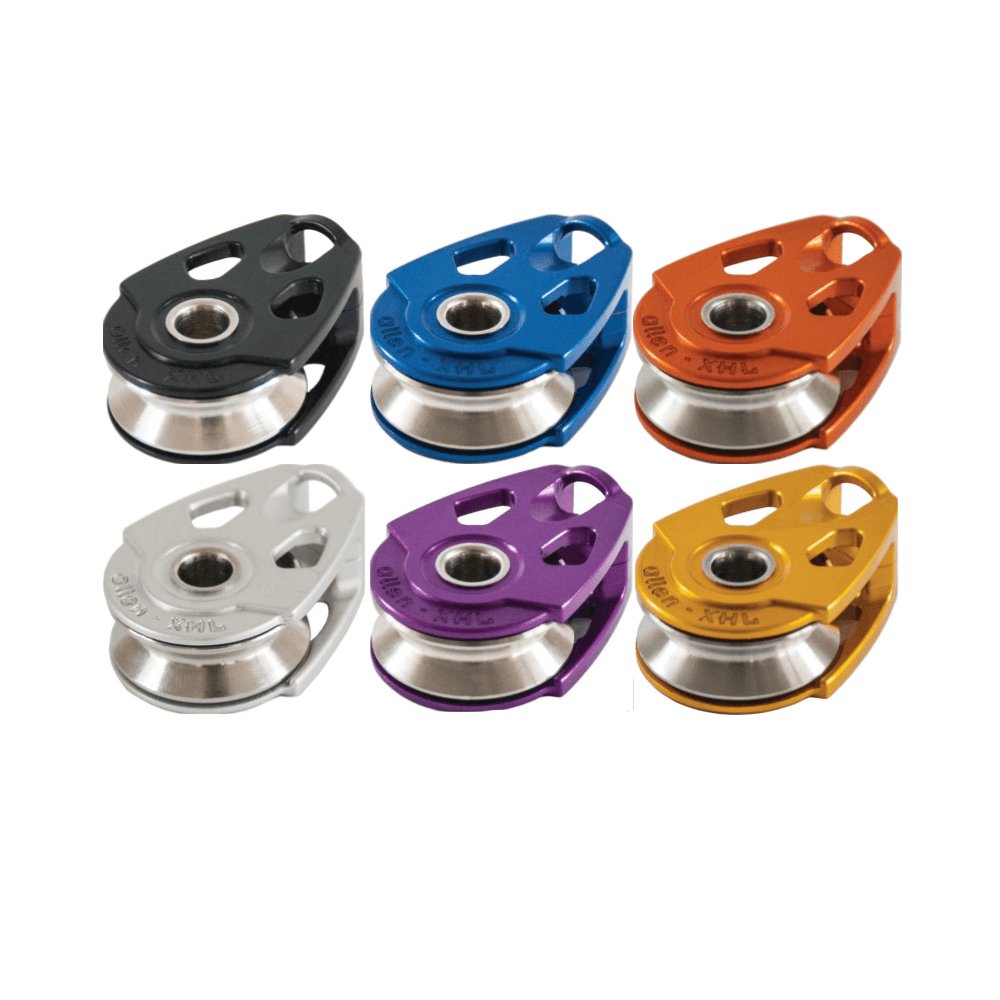

Single Extreme High Load Block - A2030XHL
The XHL range has been designed to deal with extremely high loads without compromising on low load dynamic performance.
This has been achieved by combining the Allen dynamic bearing technology – twin rows of stainless-steel ball bearings running on a stainless-steel axle – with a plain bearing peek washer.
The result is a bearing system which can take extreme static loads without damaging the dynamic performance of the ball bearings.
Ideal for use in kicker cascades or halyard turning points where static loads can be extremely high but low load dynamic performance is required.
Features
- CNC machined aluminium side cheeks.
- Precision turned stainless-steel sheave.
- XHL Bearing Technology.
- 1250 Kg breaking load.
The Allen Engineering drawing for the A2030XHL block can be found HERE
Block Properties
| Breaking Load | 1250 Kg. |
|---|---|
| Overall Length | 43 mm |
| Max. Line | 8 mm |
| Working Load | 500 Kg. |
| Weight | 41 g. |
Learn more about caring for your gear on our product care page here
