Seasure 18.14DL 5mm Bottom Transom Pintle - 4 Hole Mounting, Drop Nose Pin
Precio regular
51,80 €
Precio de venta
51,80 €
Precio regular
Ahorre 0
Vendido
VAT and import duty included.
Out of stock
If currently in stock:
- Courier Delivery - Duty/VAT Inclusive receive by: Aug 31 - Sep 04

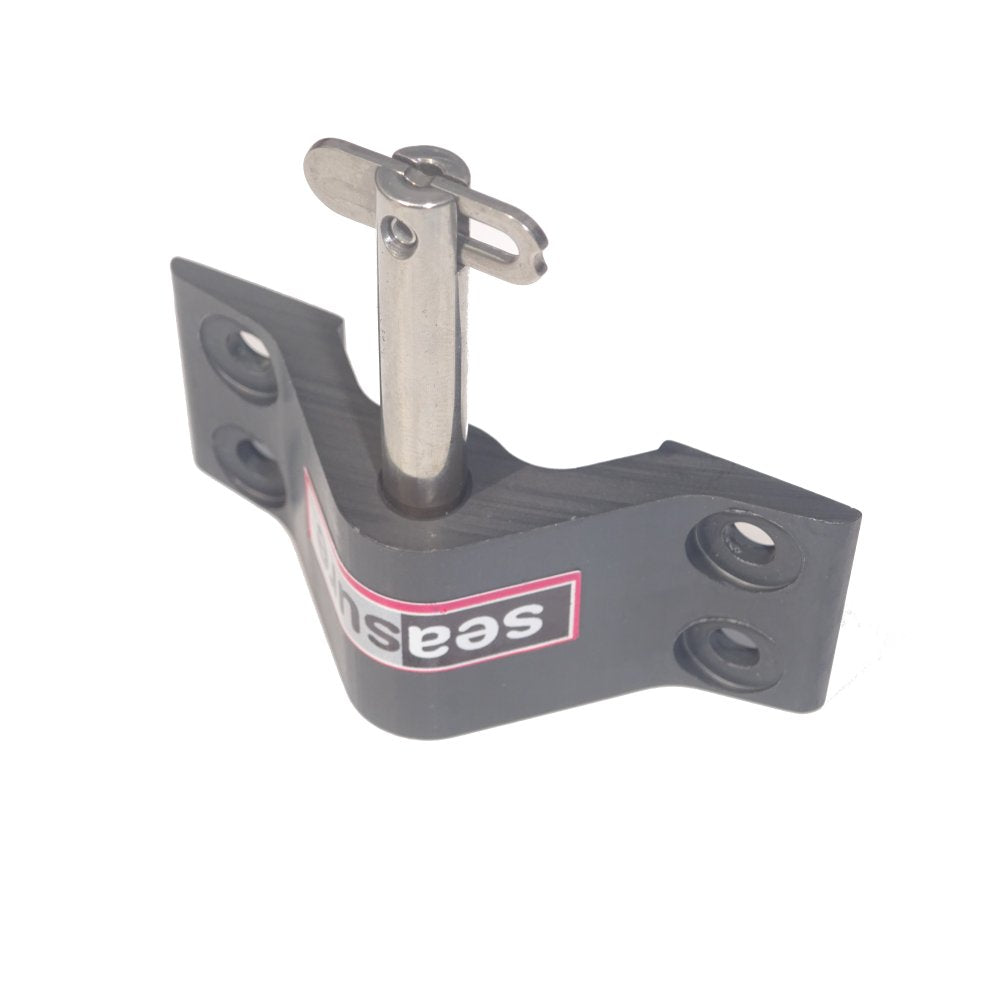

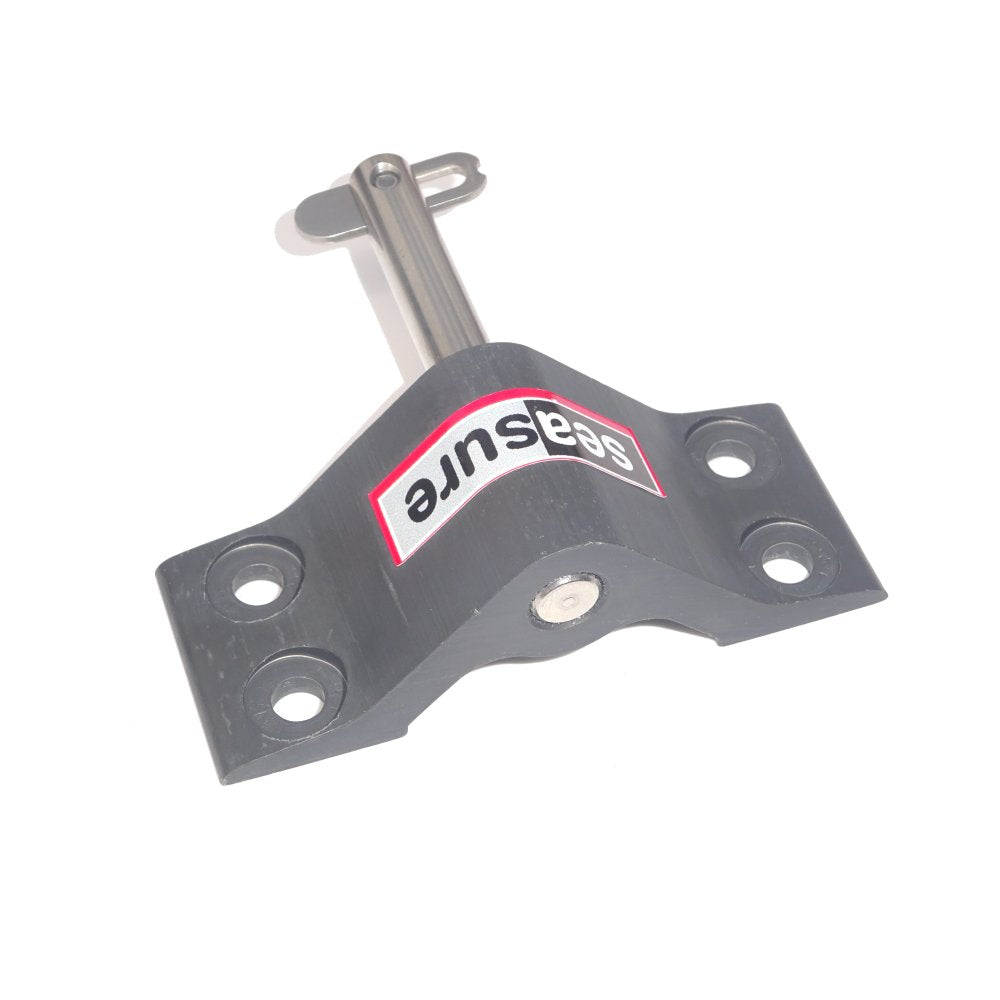

The 4 hole transom mounted pintle is one of the most common and used transom fittings around. The fitting has 4no. 5mm countersunk fixing holes for attaching to the back of the boat. The pin is made from 316 stainless steel and has a drop nose end that can be locked to keep your rudder or rudder stock attached safely to the back of the boat. it is made to fit snugly with our gudgeon ranges. Packing pieces are available to increase the distance that the fitting sits off the back of the boat. The part number for this is 18.54
Seasure Bottom Transom Pintle Properties 18.14DL
| Number of fixing holes | 4 no. |
|---|---|
| Hole size | 5 mm |
| Overall width | 75.8 mm |
| Overall height | 29 mm |
| Hole spacing horizontal | 55.5 mm |
| Hole spacing vertical | 16 mm |
| Pin length | 42 mm |
| Pin diameter | 8 mm |
| Weight | 0.01 kg |
