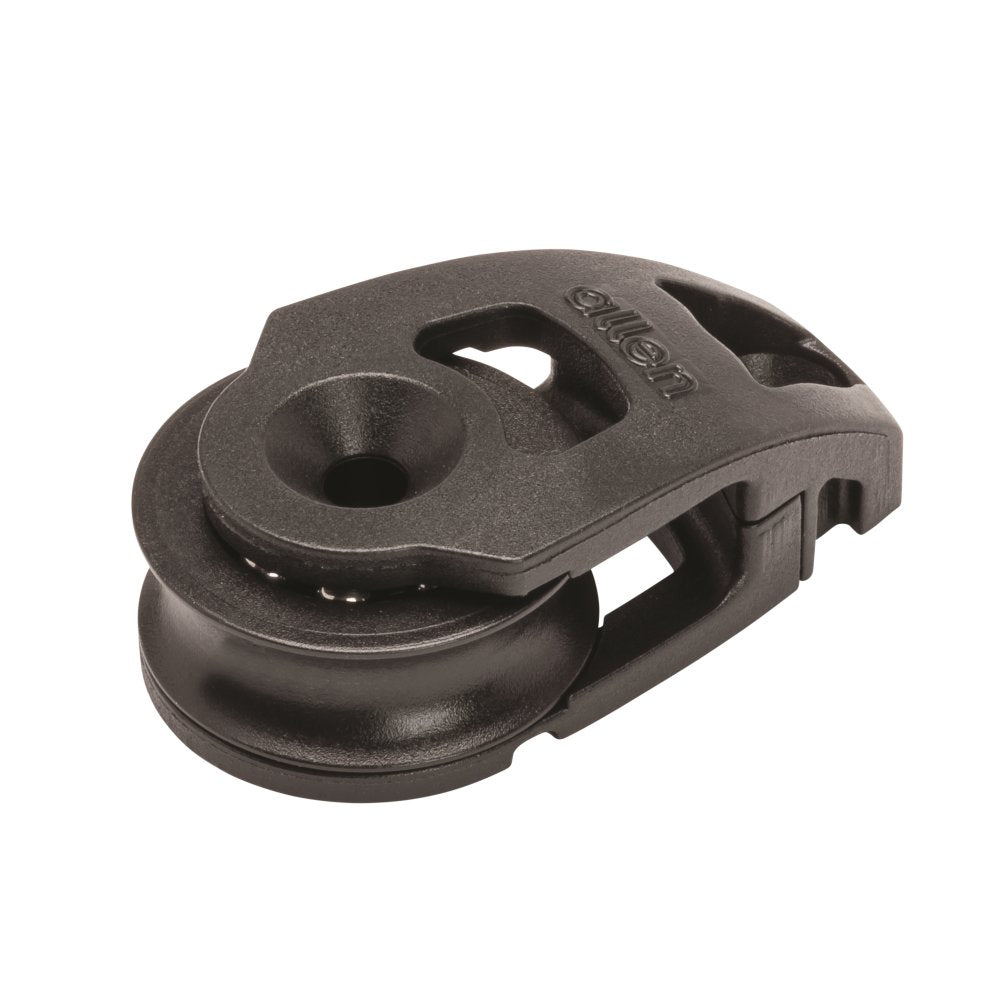

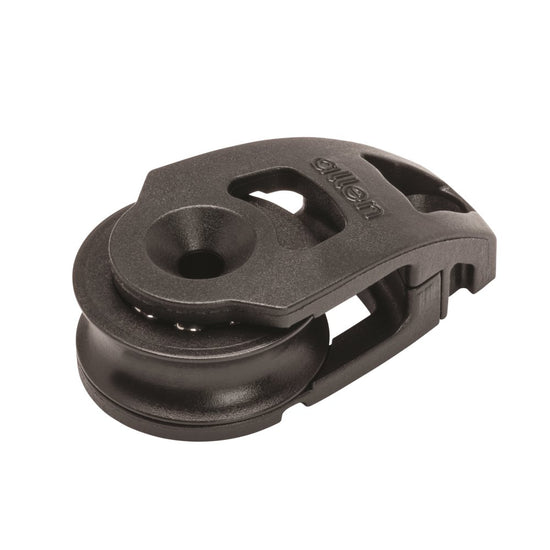

Allen A2036M 30mm Composite Cheek Block.

Name: Allen A2036M 30mm Composite Cheek Block.
Brand: Allen
SKU: 129669
Price: 20.43 EUR
Availability: InStock

20,43 €

20,43 € ~~21,50 €~~

Ahorre 1,07 €

Vendido

VAT and import duty included.

Variantes del producto

Cantidad

Out of stock

Si hay stock

Vídeo del producto

Allen 2036M 30mm Composite Cheek Block.

Engineering drawing of the block can be found HERE

Number of Base Fixing Holes	2 no.
Base Fixing Hole Spacing	30 mm
Overall Height	16.9 mm
Overall Length	50.1 mm
Overall Width	28.2 mm
Fixing Hole diameter	5 mm
Suitable for a line diameters (max)	8 mm
Maximum working load	400 kg
Breaking load	400 kg
Weight	24 grams

Descripción

Allen 2036M 30mm Composite Cheek Block.

Engineering drawing of the block can be found HERE

Number of Base Fixing Holes	2 no.
Base Fixing Hole Spacing	30 mm
Overall Height	16.9 mm
Overall Length	50.1 mm
Overall Width	28.2 mm
Fixing Hole diameter	5 mm
Suitable for a line diameters (max)	8 mm
Maximum working load	400 kg
Breaking load	400 kg
Weight	24 grams
