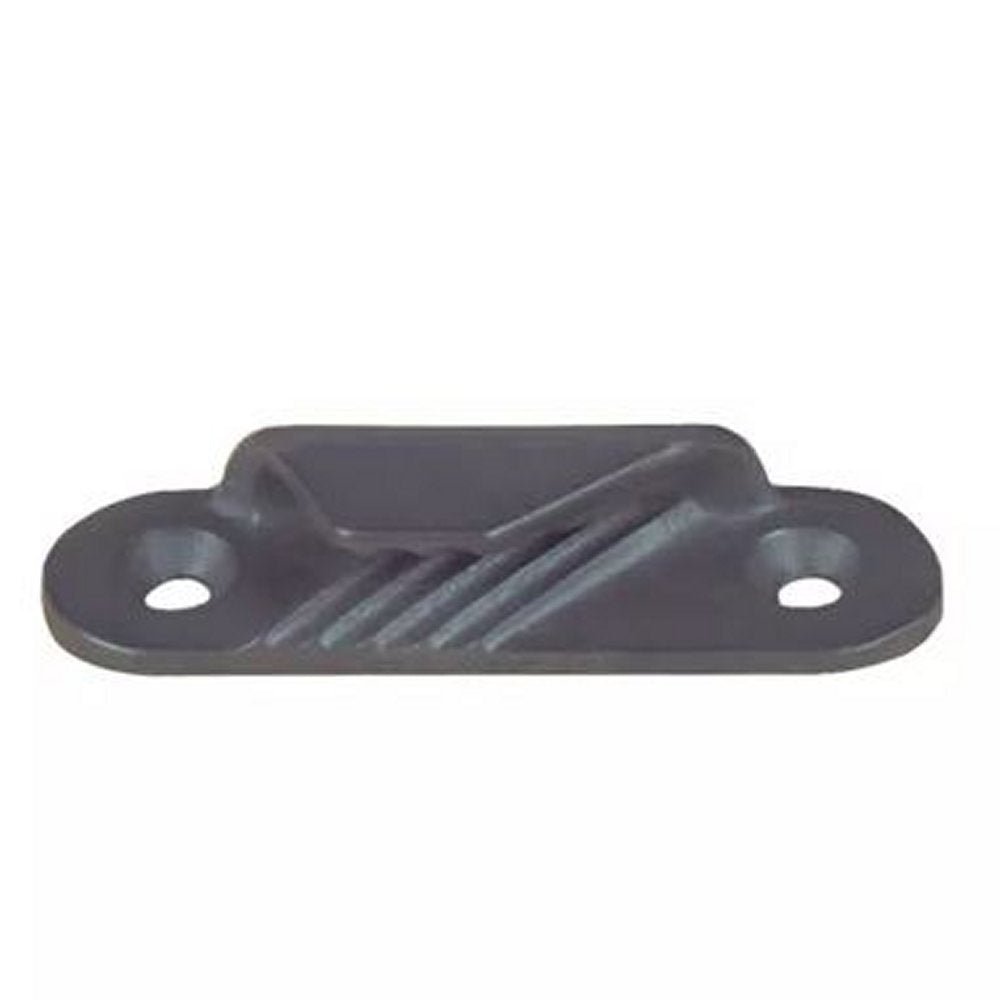

Clamcleat CL258AN Fineline Starboard - Anodised.

The tooth design allows a quick, positive lock that is easy to release, add this to its low profile and ability to hold high loads, it makes an ideal cleat for adjusting leech lines on larger sails. Use a backplate when riveting a cleat onto fabric to prevent the rivet pulling through.It can be mounted in two positions and can be sewn or riveted to the sail. Manufactured from aluminium for light weight and durable performance, this version is hard anodised:

• Rope size: 3-6mm
• Length: 70mm
• Width: 21mm
• Hole centers: 49mm
• Mounting bolt size: M4
• Mounting screw size: 4.2mm
• Weight: 19g

Full technical drawing available here
